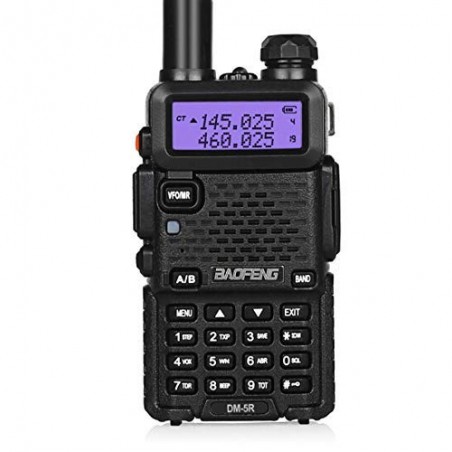

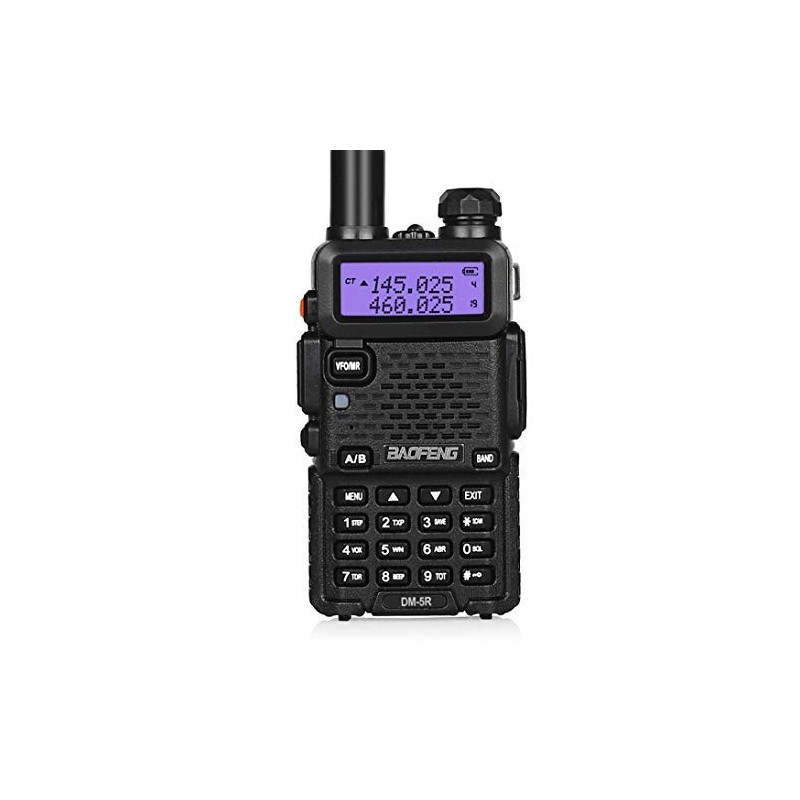

BAOFENG UV-5R PROGRAMMED LPD+PMR

Data Sheet

- Frequency range: VHF 136-174MHz / UHF 400-520MHz
- Dual-Band Display, Dual Freq. Display, Dual-Standby
- Output Power: 4 W (Max) / 1 W (min)
- 128 channels
- 50 CTCSS and 104 CDCSS
- Built-in VOX function
- Tone 1750 Hz for repeater radio links
- FM Radio (65.0MHz-108.0MHz)
- High-power LED torch
- Backlit numeric keypad
- Large LCD display with backlighting in 3 colours
- High (4W) / low (1W) transmission power selection
- 25KHz/12.5KHz selectable
- Emergency alarm
- Low battery warning
- Power saving
- Time-out timer
- Keypad lock
- Monitor Channel
- Step channels: 2.5/5/6.25/10/12.5/25KHz
- Single band, dual display, dual standby
- Operating bands A /B independent
- 128storable d icannels
- FM radio with 25 storable stations
- Wide /Narrow Band (25kHz/12.5kHz)
- VOX selectable 0 ~9 levels
- English language voice prompts
- CTCSS/DCS tone 1750Hz PTT ID&ANI
- Selectable transmission priority
- 0 ~9 squelch setting levels

Dual Band / Dual Display / Dual-Standby

A / B- band- independent operation

128 channel storage groups

Context menu mode

VFO and memory scan channels

EMERGENCY Alarm

Three selectable backlight colours

9 VOX adjustable according to speed

PTT & ANI ID

FM radio , store up to 25 stations

Stimmekompandierung

50 CTCSS/104 DCS

PC programmable

Wide / Narrow band ( 25kHz/12.5kHz )

Time Out Timer Function (TOT )

High / Low power selectable channels

Busy channel Lock- Out(BCLO )
