MOSFET ACTIVE BRAKE WIRED SOFTAIR JEFFTRON

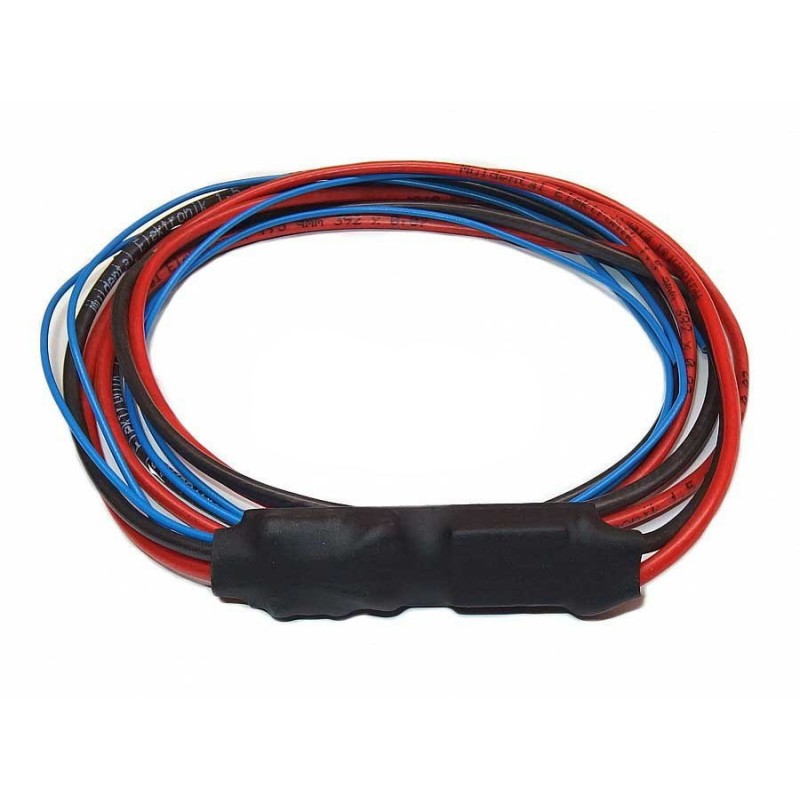

Professionally designed and manufactured active motor brake (Active Brake) mosfet with 500 mm long wires on each side for softair electric rifles (AEG) - four high quality 1.5qmm (AWG16) power wires covered with silicone insulation and two 0.25qmm (AWG24) signal wires -

- The active trigger uses excess energy from the motor to stop it. The braking effect is the most powerful with a high torgue motor

The device has voltage stabilisation, the mosfet is fully open and produces less heat

- In rifles with a very high rate of fire (ROF) the active brake solves the annoying problem of multiple shots in semi mode

- in semi-mode the piston is partially tensioned, the spring is fully released, the parts in the gearbox are not under stress and the ball pusher blocks the hop up in most rifles (depends on the ROF)

- in auto mode the piston stops in a random position due to the design of the gearbox. But this stop is much faster with the active brake

- The active brake increases the responsiveness of the rifle and the battery lasts longer

eliminates sparking on trigger contacts

- specified for common batteries: Ni-mh 8.4 - 12V, lipo 7.4 - 11.1V

Designed for maximum M150 spring and ROF 25bb/s. For higher load use the extreme variant of this device

- Easy to install 6-wire connection

- Dimensions 45x15x10mm

- coated with paint that protects the device from water

Assembly illustration included
